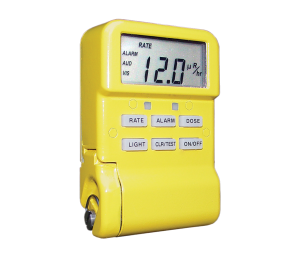

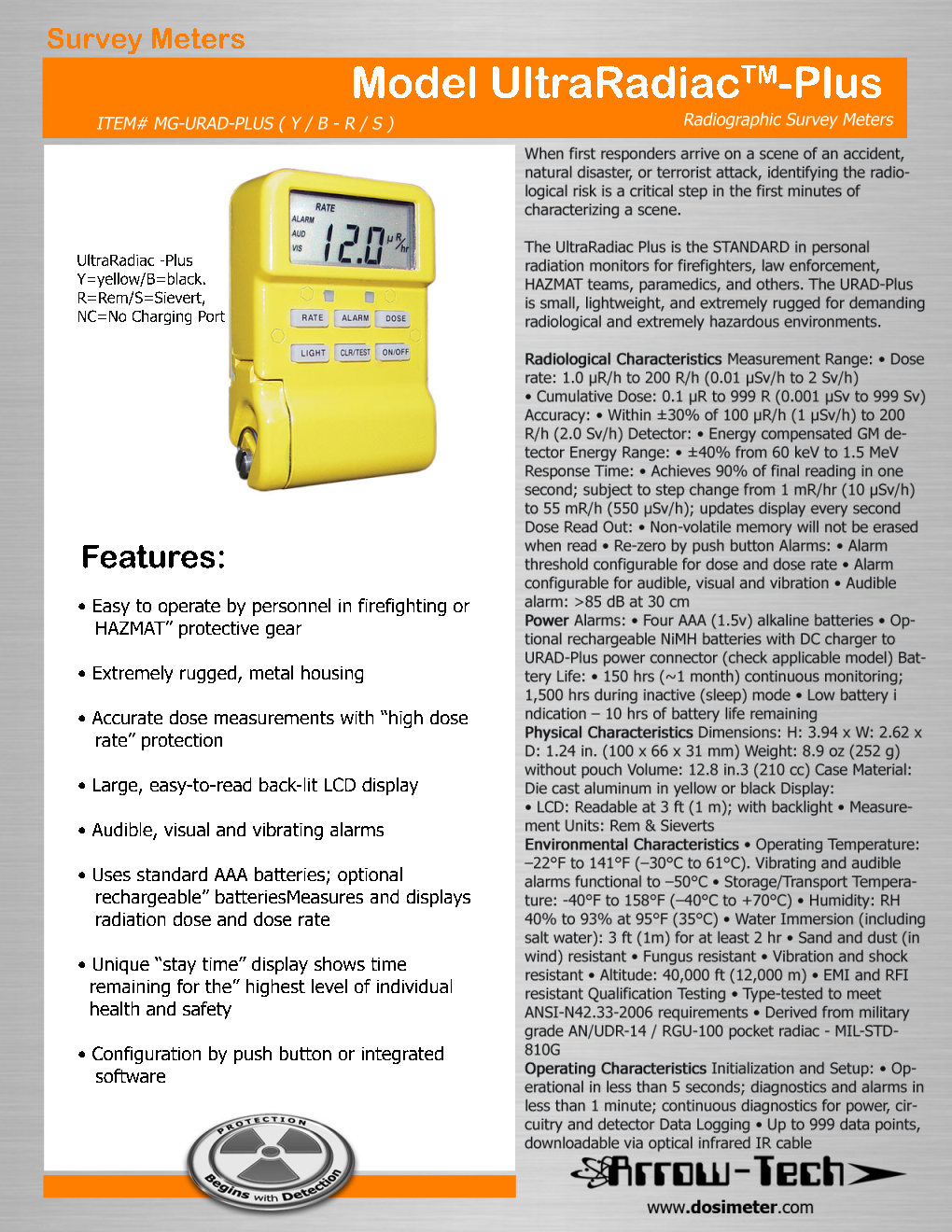

UltraRadiac Plus

FEATURES:
• Easy to operate by personnel in firefighting or HAZMAT” protective gear
• Extremely rugged, metal housing
• Accurate dose measurements with high dose rate” protection
• Large, easy-to-read back-lit LCD display
• Audible, visual and vibrating alarms
• Uses standard AAA batteries; optional rechargeable” batteries
• Measures and displays radiation dose and dose rate
• Unique “stay time” display shows time remaining for the” highest level of    individual health and safety
• Configuration by push button or integrated software

Radiological Characteristics Measurement Range:
• Dose rate: 1.0 μR/h to 200 R/h (0.01 μSv/h to 2 Sv/h)
• Cumulative Dose: 0.1 μR to 999 R (0.001 μSv to 999 Sv)

Accuracy:
• Within ±30% of 100 μR/h (1 μSv/h) to 200 R/h (2.0 Sv/h)

Detector:
• Energy compensated GM detector Energy Range:
• ±40% from 60 keV to 1.5 MeV Response Time:
• Achieves 90% of final reading in one second; subject to step change from
   1 mR/hr (10 μSv/h) to 55 mR/h (550 μSv/h); updates display every second

Dose Read Out:
• Non-volatile memory will not be erased when read
• Re-zero by push button

Alarms:
• Alarm threshold configurable for dose and dose rate
• Alarm configurable for audible, visual and vibration
• Audible alarm:>85 dB at 30 cm

Power Alarms:
• Four AAA (1.5v) alkaline batteries
• Optional rechargeable NiMH batteries with DC charger to URAD-Plus power    connector (check applicable model) Battery Life:
• 150 hrs (~1 month) continuous monitoring; 1,500 hrs during inactive (sleep)    mode
• Low battery i ndication – 10 hrs of battery life remaining

Physical Characteristics Dimensions: H: 3.94 x W: 2.62 x D: 1.24 in. (100 x 66 x 31 mm) Weight: 8.9 oz (252 g) without pouch Volume: 12.8 in.3 (210 cc)

Case Material: Die cast aluminum in yellow or black

Display:
• LCD: Readable at 3 ft (1 m); with backlight
• Measurement Units: Rem & Sieverts

Environmental Characteristics
• Operating Temperature: –22°F to 141°F (–30°C to 61°C). Vibrating and audible    alarms functional to –50°C
• Storage/Transport Temperature: -40°F to 158°F (–40°C to +70°C)
• Humidity: RH 40% to 93% at 95°F (35°C)
• Water Immersion (including salt water): 3 ft (1m) for at least 2 hr
• Sand and dust (in wind) resistant
• Fungus resistant
• Vibration and shock resistant
• Altitude: 40,000 ft (12,000 m)
• EMI and RFI resistant Qualification Testing
• Type-tested to meet ANSI-N42.33-2006 requirements
• Derived from military grade AN/UDR-14 / RGU-100 pocket radiac -MIL-STD-810G

Operating Characteristics Initialization and Setup:
• Operational in less than 5 seconds; diagnostics and alarms in less than 1 minute;    continuous diagnostics for power, circuitry and detector Data Logging
• Up to 999 data points, downloadable via optical infrared IR cable
