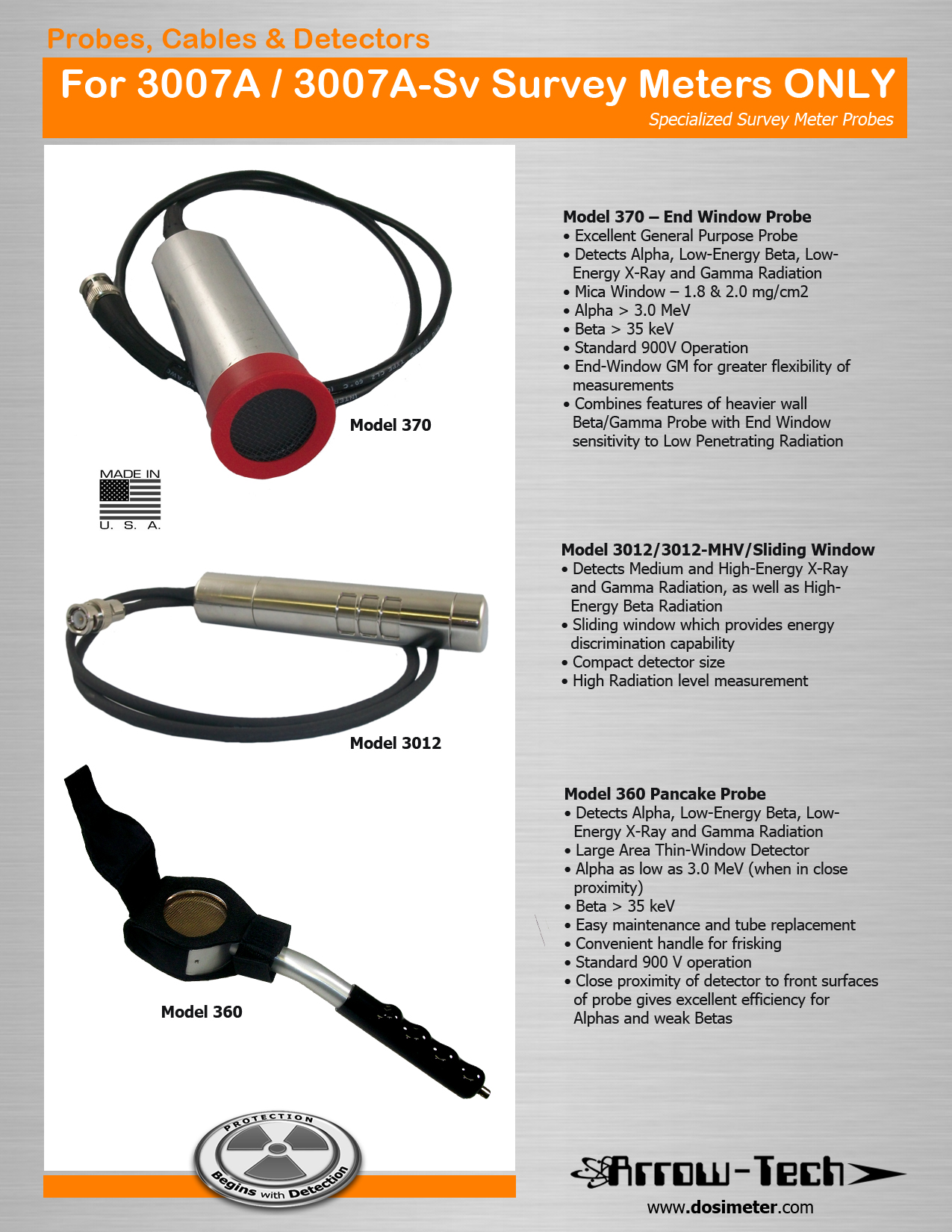

370 End Window Probe

Model 370 Pancake Probe

The Model 370 End Window Probe has a mica window that has a thickness of 1.8 to 2.0 mg/cm². This allows detection of alpha radiation as low as 3.0 MeV when in close proximity to the window. Beta radiation in excess of 35 keV and X-ray or gamma radiation greater than 6 keV can also be deteched. The detector is provided with a BNC connector. It can be used with most count rate and survey meters which accept Geiger Mueller (GM) detectors operating at 900V DC.

Features:

• Economical radiation detection
• Excellent General Purpose Probe
• Detects Alpha, Low-Energy Beta, Low-Energy X-Ray and Gamma Radiation
• Standard 900V Operation
• End-Window GM for greater flexibility of measurements
• Combines features of heavier wall Beta/Gamma Probe with End Window sensitivity to Low Penetrating Radiation
