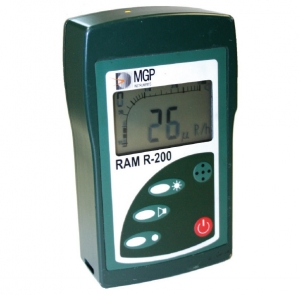

RAM-R-200 Survey Meter
; "RAM-R-200 Survey Meter")
Click to enlarge
Manufacturer: Mirion Technologies (MGP)
Price: Call for price
Product ID : RAM-R-200
Weight: 1.00 lbs
E-mail to a friend
Please complete this form.
All fields are required.
All fields are required.
Overview
The RAM-R 200 can be used as a portable or stand-alone radiation measurement monitor. An audible indication is activated either by frequency fluctuations in accordance with the field strength or chip for each measured pulse. The RAM-R-200 utilizes a combination display consisting of a smooth digital readout for minimum fluctuations and a two decade analog bar graph for fast viewing response.
Purchase
Call for price
Description
The RAM-R 200 can be used as a portable or stand-alone radiation measurement monitor. An audible indication is activated either by frequency fluctuations in accordance with the field strength or chip for each measured pulse. The RAM-R-200 utilizes a combination display consisting of a smooth digital readout for minimum fluctuations and a twodecade analog bar graph for fast viewing response.
FEATURES:
The RAM-R-200 is designed for measuring a wide range of alpha, beta and gamma radiation fields (with external smart detectors). The RAM-R-200 features 2 internal energy compensdated GM tubes, with a measurment range of 10uR/hr to 100 R/hr (0.01mSv/hr to 1 Sv/hr).
- includes embedded microprocessors, data logging and datacommunication for calibration
- automatic self-test of meter and external probes
- automatic detector identification with each change of thedetector
- built-in RS232 communication with optional telemetry
- calibration software
- backlight display
- optional extended pole for hard to range places
- data logging: 1000 data records
TECHNICAL SPECIFICATIONS:
Radiological characteristics
• detector: energy compensated GM-tube (ZP-1201 and ZP-1313)
• accuracy: +/- 10% of reading, within measuring range
• energy range: 60 to 2000 keV
• sensitivity: 17cps/mR/h (ZP1201), 1.4 cps/mR/h (ZP1313)
• detector life time: 20R/h field for six months
• contamination: cpm or counts (e.g. cpm, Kcpm, Mcpm)
electrical characteristics
• power supply – 9 Volts (supplied by a 9 Volt battery located in the meter case)
• battery life: approximately 100 hours of continuous use
Mechanical characteristics
• meter dimensions (w x h x l): 80 x 35 x 134 mm (3.2 x 1.4 x 5.3 in)
• weight (including.cell): 460gr (1 lb)
• casing: seawater resistant aluminum alloy, shock resistant
• display:
• DigiLog (3 digits and 2 decades of analog bar graph)
• Four push-buttons: On/off, light, speaker, mode
Environmental characteristics
• temperature
• operation -30° to 60°C (-22 to 140° F )
• storage -30° to 70°C (-22 to 158° F )
• relative humidity: 10 to 95% RH (non-condensing)
