370 End Window Probe

370 End Window Probe - Use with 3007A Survey Meter
Click to enlarge

More images

Click to enlarge
Manufacturer: Arrow-Tech, Inc.
Price: $295.00
Product ID : 370

Overview

The Model 370 End Window Probe is used in general purpose contamination monitoring. This probe provides sensitivity to alpha, beta and gamma radiation.

Purchase

Description

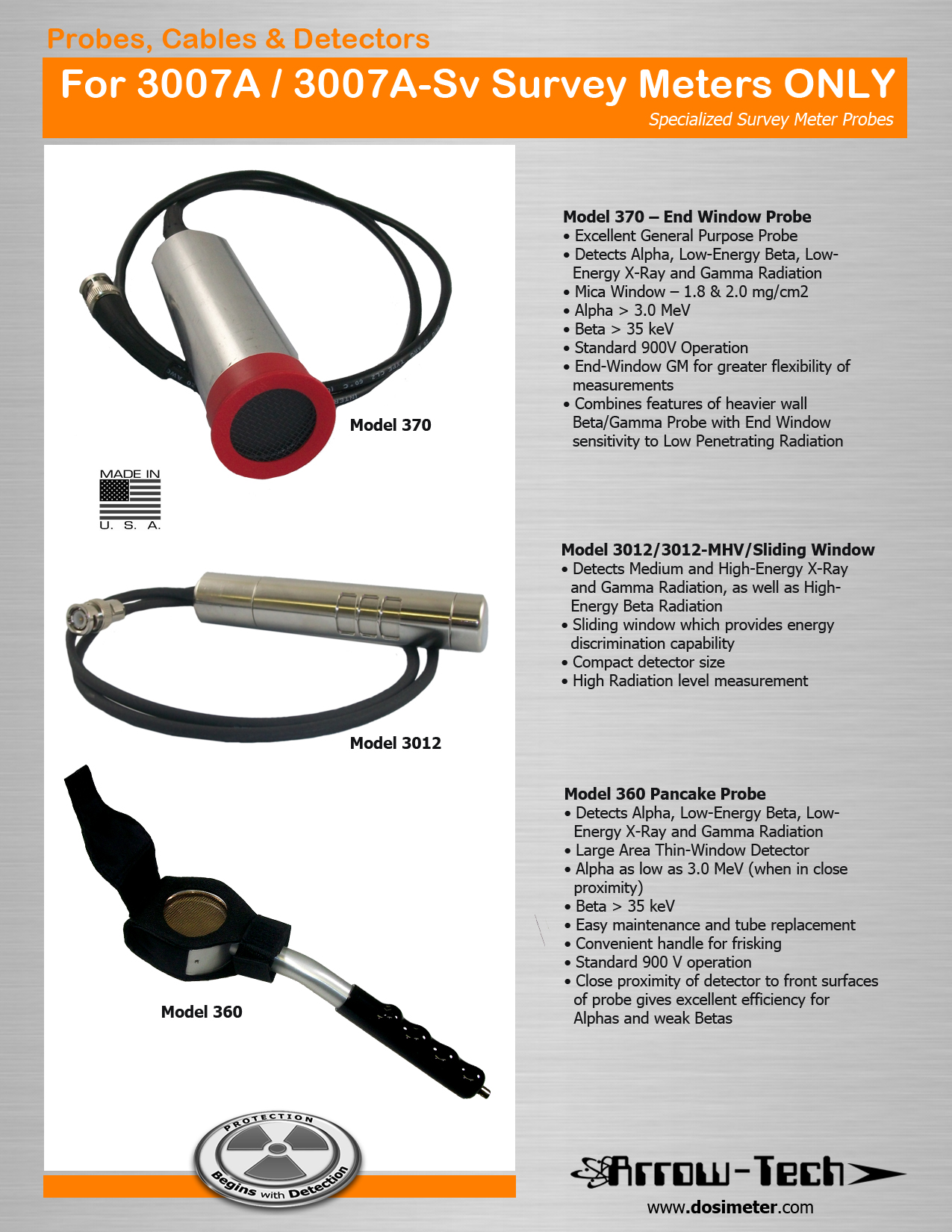

Model 370 Pancake Probe

The Model 370 End Window Probe has a mica window that has a thickness of 1.8 to 2.0 mg/cm2. This allows detection of alpha radiation as low as 3.0 MeV when in close proximity to the window. Beta radiation in excess of 35 keV and X-ray or gamma radiation greater than 6 keV can also be deteched. The detector is provided with a BNC connector. It can be used with most count rate and survey meters which accept Geiger Mueller (GM) detectors operating at 900V DC.


Features:

  • Economical radiation detection
  • Excellent General Purpose Probe
  • Detects Alpha, Low-Energy Beta, Low-Energy X-Ray and Gamma Radiation
  • Standard 900V Operation
  • End-Window GM for greater flexibility of measurements
  • Combines features of heavier wall Beta/Gamma Probe with End Window sensitivity to Low Penetrating Radiation
