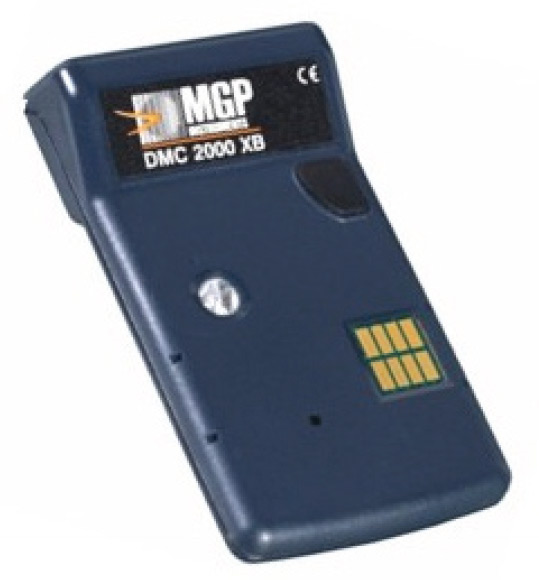

DMC 2000XB Personal Electronic Dosimeter, X-Ray, Gamma, Beta

DMC 2000XB - Personal Electronic Dosimeter - X-Ray, Beta, Gamma

The use of β particle emitters for radiation therapies (treatments of eye tumors, coronary arteries, or inflammatory joint diseases) has significantly increased during recent years, and this has made the use of dedicated β dosimeters essential.

The DMC 2000XB was designed to allow simultaneously deep dose equivalent Hp(10) and shallow dose equivalent Hp(0.07) measurements for X-ray, gamma and beta emissions. Furthermore, it can be used as an operational dosimetry system for all medical risk assessment including radiological exposures. In addition, it has applications in radioactive source production facilities, nuclear power plants and other nuclear facilities.

FEATURES:

The DMC 2000XB is an X-ray/Gamma and Beta detection dosimeter, featuring, dose rate and programmable alarms. The DMC 2000XB is user friendly, lightweight and water resistant.

• X-ray/gamma energies: 20 keV to 6 MeV
• Beta energies 60 keV to 3.5 MeV
• Dedicated to simultaneous measurements of X-ray, gamma and beta radiation
• Small, light, ergonomic, compact, and rugged
• Compliant with international standards and local rules
• Hands-free communication reading system with data centralization

TECHNICAL SPECIFICATIONS:

Radiological Characteristics

• compliant to IEC 61526
• PTB approved
• display units: mSv or mrem

Measurement Range:

• dose:1μSv to 10Sv (0.1mrem to 1000 rem)
• rate: 0.1 μSv/h to 10 Sv/h (0.01 mrem/h to 1000 rem/h)
• display: 0.01 mSv/h to 10 Sv/h or 0.001 mSv/h to 10 Sv/h
• linearity: <± 10% up to 1 Sv/h (100 rem/h)
• <± 25% up to 10 Sv/h (1000 rem/h)
• X and Gamma energy range: 20 keV to 6 MeV
• accuracy: <± 5% (137Cs, 0.2 mSv/h)

Electrical Characteristics

• standard calculator battery LiMnO2 CR2450, one year battery life (typical)

Mechanical Characteristics

• dimensions: 84 x 48 x 17.5mm (3.3 in x 1.9 in x 0.7 in)
• weight with battery: < 70g (2.2 oz)
• worn by a replacable clip

Environmental Characteristics

• temperature range: -10°C to 50°C (14°F to 122°F)
• humidity: < 90% at 42° (108°F)
• storage: -30°C to 71°C (-22°F to 160°F)
• shock, vibration and drop resistant waterproof
• EMC: complies and exceeds standards by a large margin
