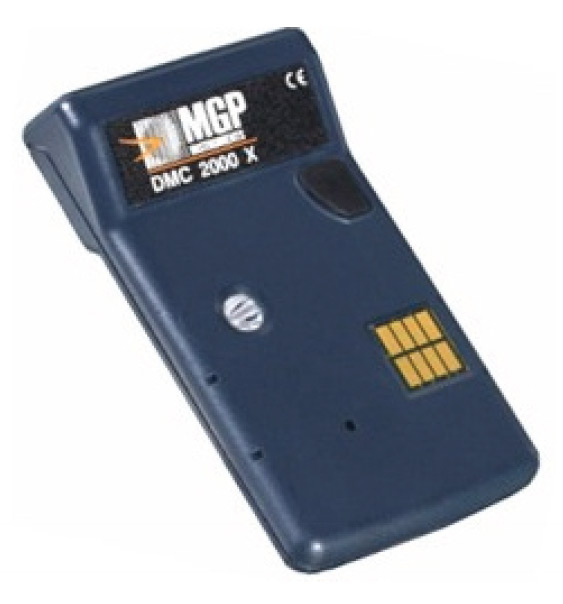

DMC 2000X Electronic Personal Dosimeter, Low-Energy X-Ray and Gamma

DMC 2000X - Personal Electronic Dosimeter - Low Energy X-Ray and Gamma

For operational dosimetry in medical environment (radiology, nuclear medicine,...), the DMC-2000X has become the reference due to the quality of its response to X and Gamma radiations associated with its real immunity to electromagnetic fields.  The DMC-2000X is also the best choice for industrial operators working with ionizing sources, and in certain cases for the nuclear industry, civil defense...

FEATURES:

The DMC 2000X is an X-ray and Gamma detection dosimeter featuring dose rate and programmable alarms. The DMC 2000X is user friendly, lightweight and water-resistant.

• Can be used in autonomous mode or integrated into a dosimetry system
• Audible and visual alarms
• Detection active self-test
• High autonomy
• Integrated history
• Hand free communiation, pass-by data exchange
• Compact, rugged, economical

Radiological Characteristics

• compliant to IEC 1283, ANSI 4220A
• PTB approved
• display units: mSv or mrem

Measurement Range:

• dose:1μSv to 10Sv (0.1mrem to 10 rem)
• rate: 0.1 μSv/h to 10 Sv/h (0.01 mrem/h to 1000 rem/h)
• display: 0.01 mSv/h to 10 Sv/h or 0.001 mSv/h to 10 Sv/h (extended option)
• linearity: <± 10% up to 1 Sv/h (100 rem/h)
• <± 25% up to 10 Sv/h (1000 rem/h)
• X and Gamma energy range: 20 keV to 6 MeV
• accuracy: <± 5% (137Cs, 0.2 mSv/h)

Electrical Characteristics

• standard calculator battery LiMnO2 CR2450, one year battery life (typical)

Mechanical Characteristics

• dimensions: 84 x 48 x 17.5mm (3.3 in x 1.9 in x 0.7 in)
• weight with battery: < 70g (2.2 oz)
• worn by a replacable clip

Environmental Characteristics

• temperature range: -10°C to 50°C (14°F to 122°F)
• humidity: < 90% at 42° (108°F)
• storage: -30°C to 71°C (-22°F to 160°F)
• shock, vibration and drop resistant waterproof
• EMC: complies and exceeds standards by a large margin
